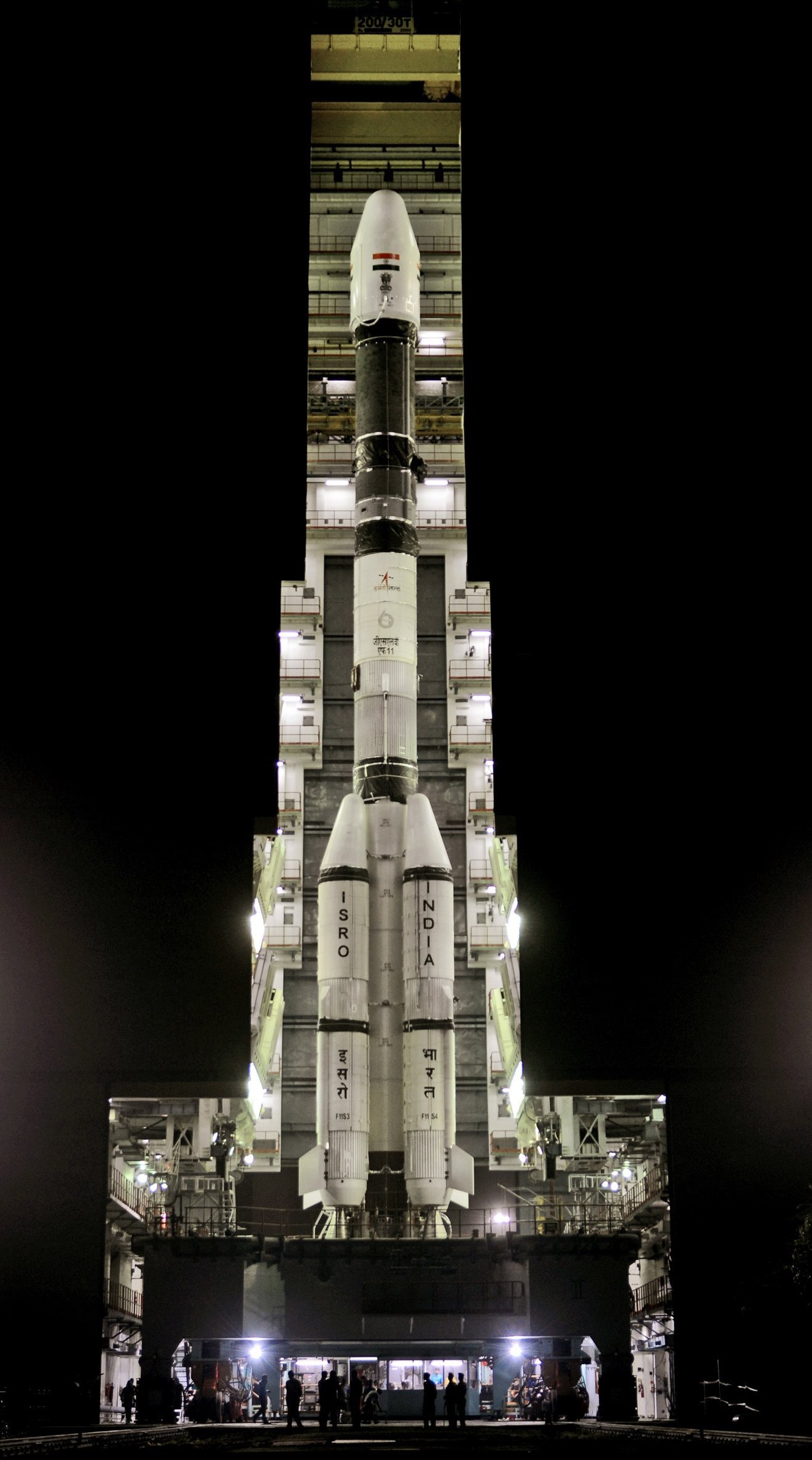

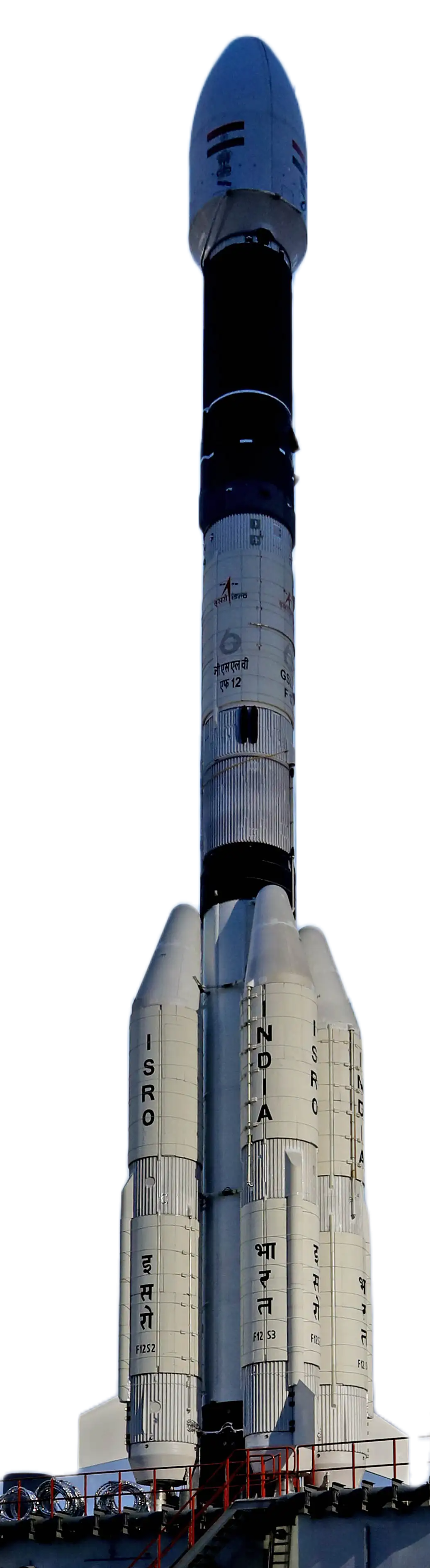

GSLV
Geosynchronous Satellite
Launch Vehicle
Geosynchronous Satellite
Launch Vehicle
3-stage launch vehicle
Payload capacity :
6000 kg to LEO
4000 kg to SSO
2250 kg to GTO
Mass of launch vehicle: 414750 kg
Height of launch vehicle: 49.13 m
Max Diameter of launch vehicle: 2.8 m
First launch on: 18 April 2001
Total launches: 15 (9 successes, 2 partial failure and 4 failures)

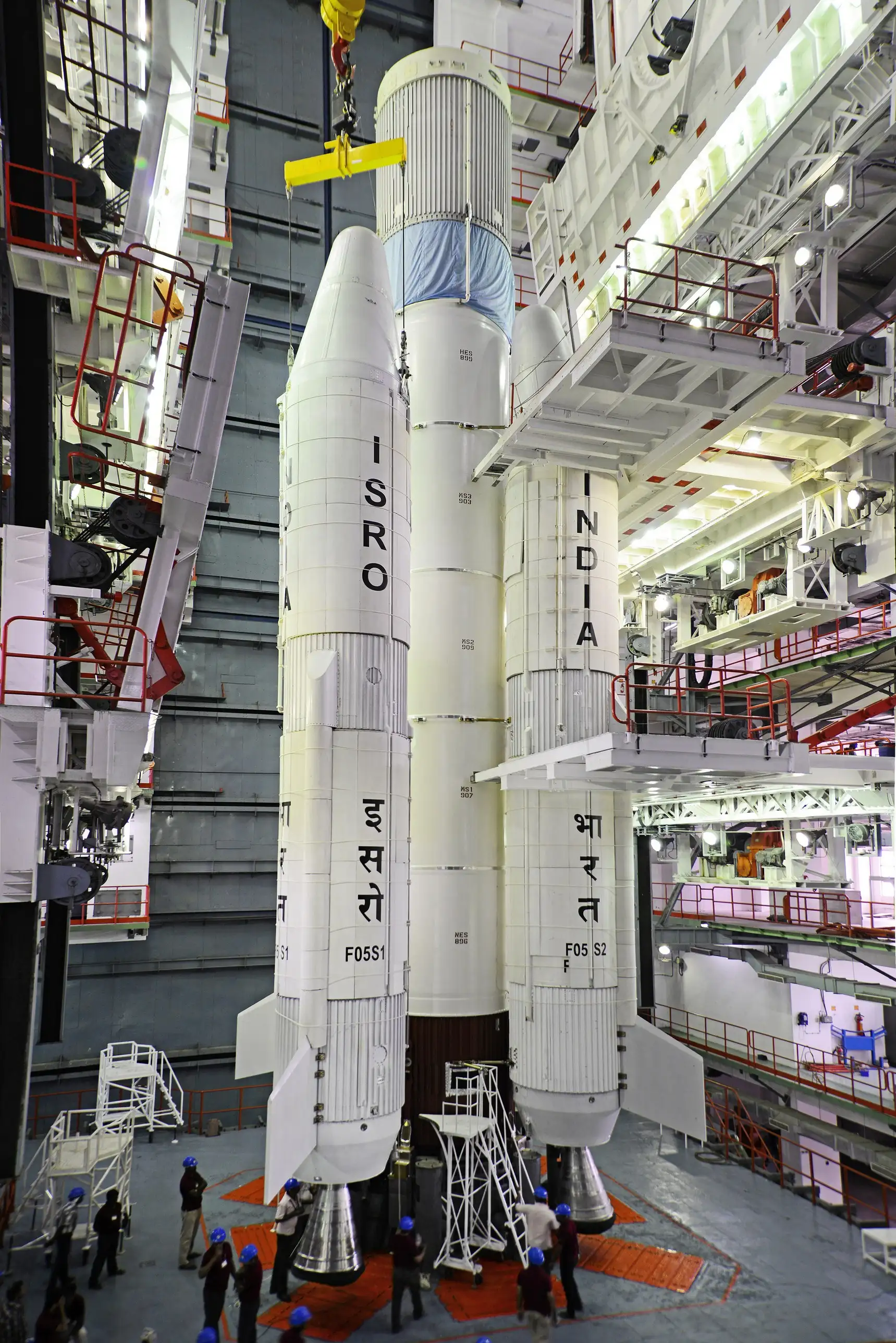

Side Boosters (L40):
- L40 Liquid propellant stage
- Propellant - UDMH (fuel) and N2O4 (oxidiser)
- Engine - 4x Vikas
- Height - 19.7
- Diameter - 2.1m
- Thrust - 760kN each
- Specific Impulse (Isp) - 262 sec
- Burn time - 154 sec
- Propellant mass: 42700 kg each

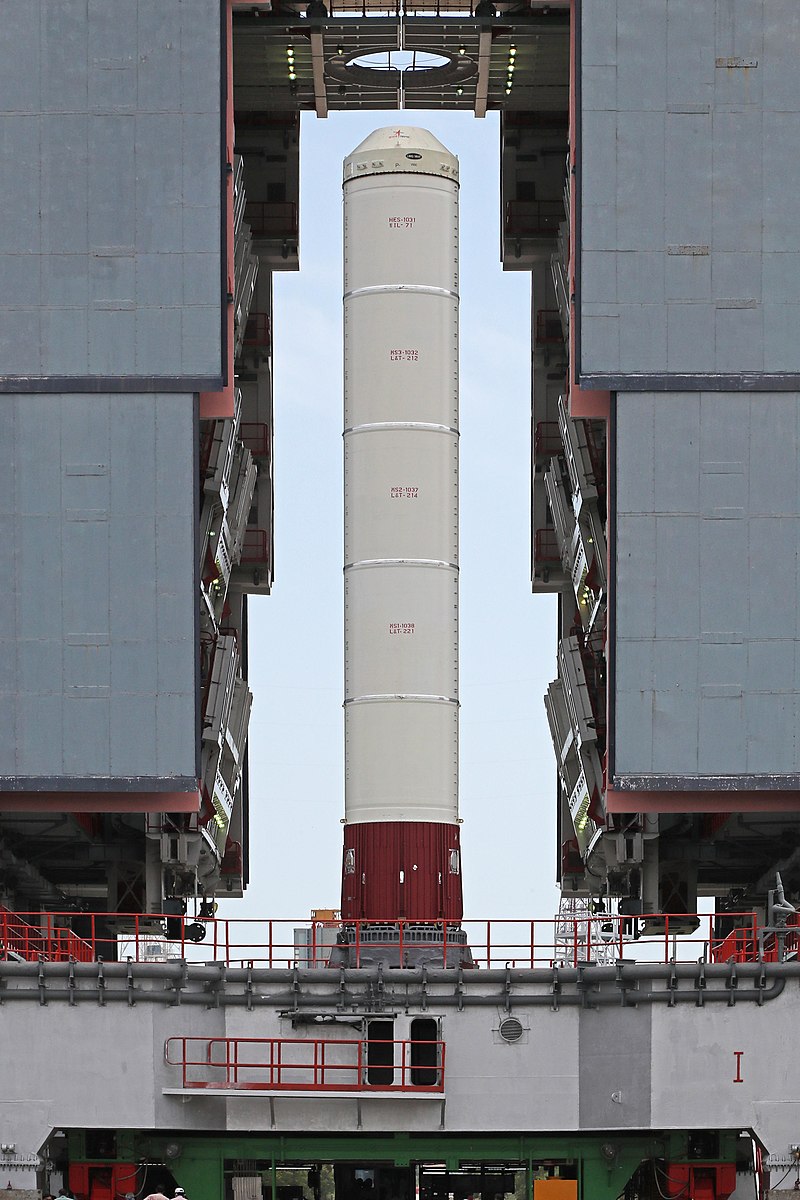

First stage/Core stage (S139):
- S139 Solid Rocket Motor
- Propellant - HTPB (Hydroxyl-terminated Polybutadiene)
- Height - 20m
- Diameter - 2.8m
- Thrust - 4846.9kN
- Specific Impulse (Isp) - 237 sec (at sea level), 269 sec (in vacuum)
- Burn time - 100 sec
- Propellant mass: 138200 kg

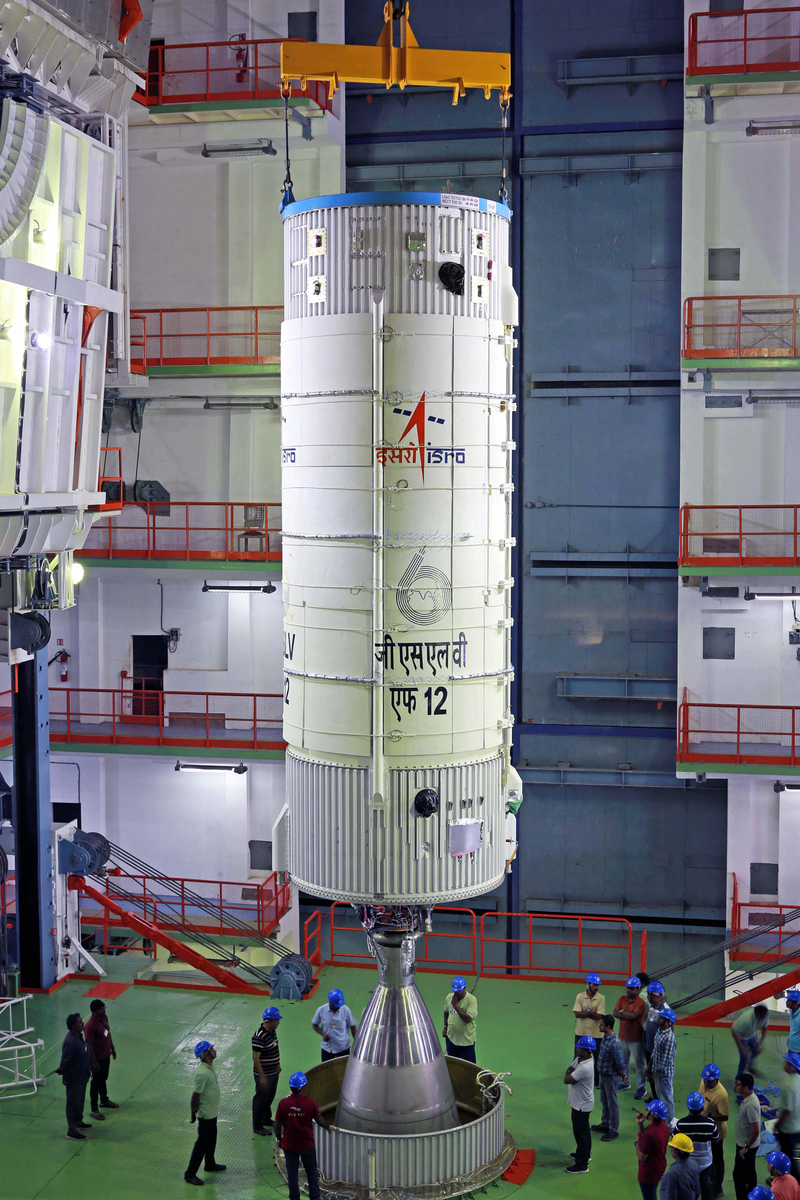

Second Stage (GS2):
- GL40 Liquid propellant stage
- Propellant - UDMH (fuel) and N2O4 (oxidiser)
- Engine - 1x Vikas
- Height - 11.6
- Diameter - 2.8m
- Thrust - 846kN each
- Specific Impulse (Isp) - 295 sec
- Burn time - 139 sec
- Propellant mass: 39500 kg each

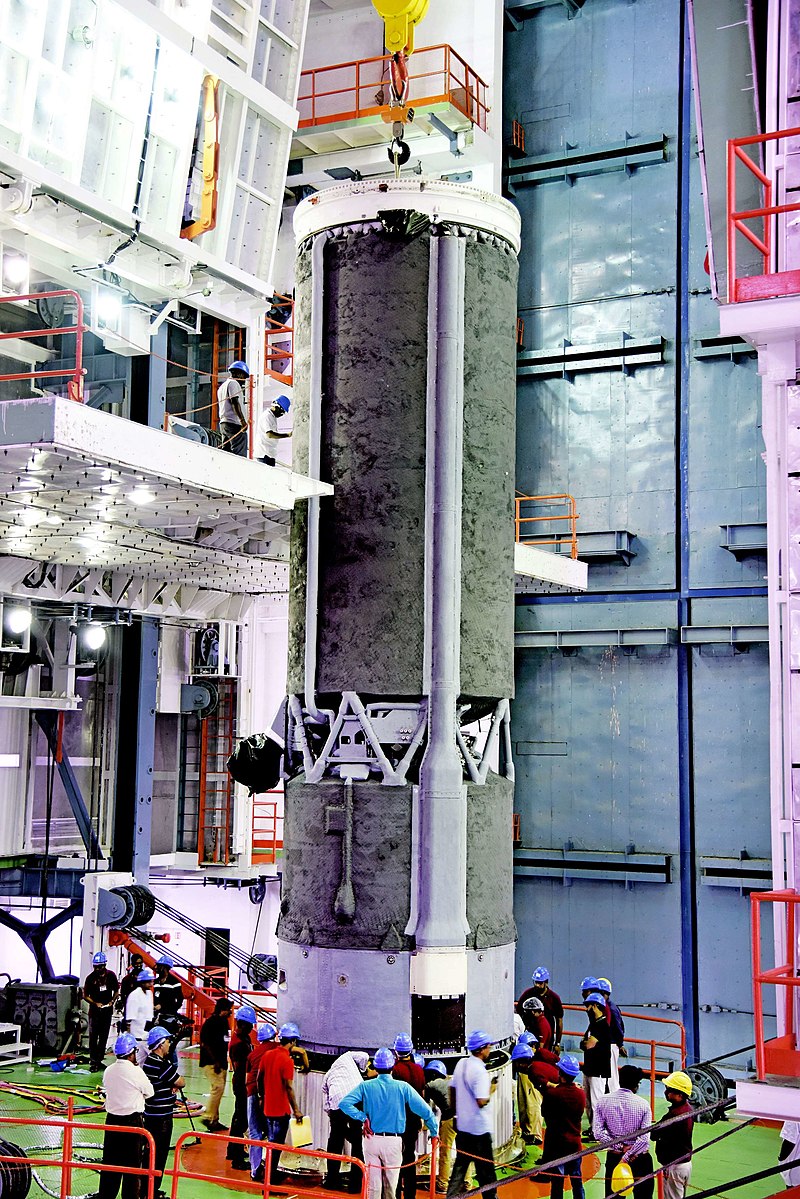

Third Stage (CUS15):
- Indigenous Cryogenic upper stage
- Propellants - Hydrogen (fuel) and Oxygen (oxidiser)
- Engine - 1x CE-7.5
- Height - 9.9m
- Diameter - 2.8m
- Thrust - 75kN
- Specific Impulse (Isp) - 454 sec (in vacuum)
- Burn time - 846 sec
- Propellant mass: 15000 kg
Work in progress
